defining "temperature"

Definition of temperature on the International Temperature Scale of 1990 (ITS-90):

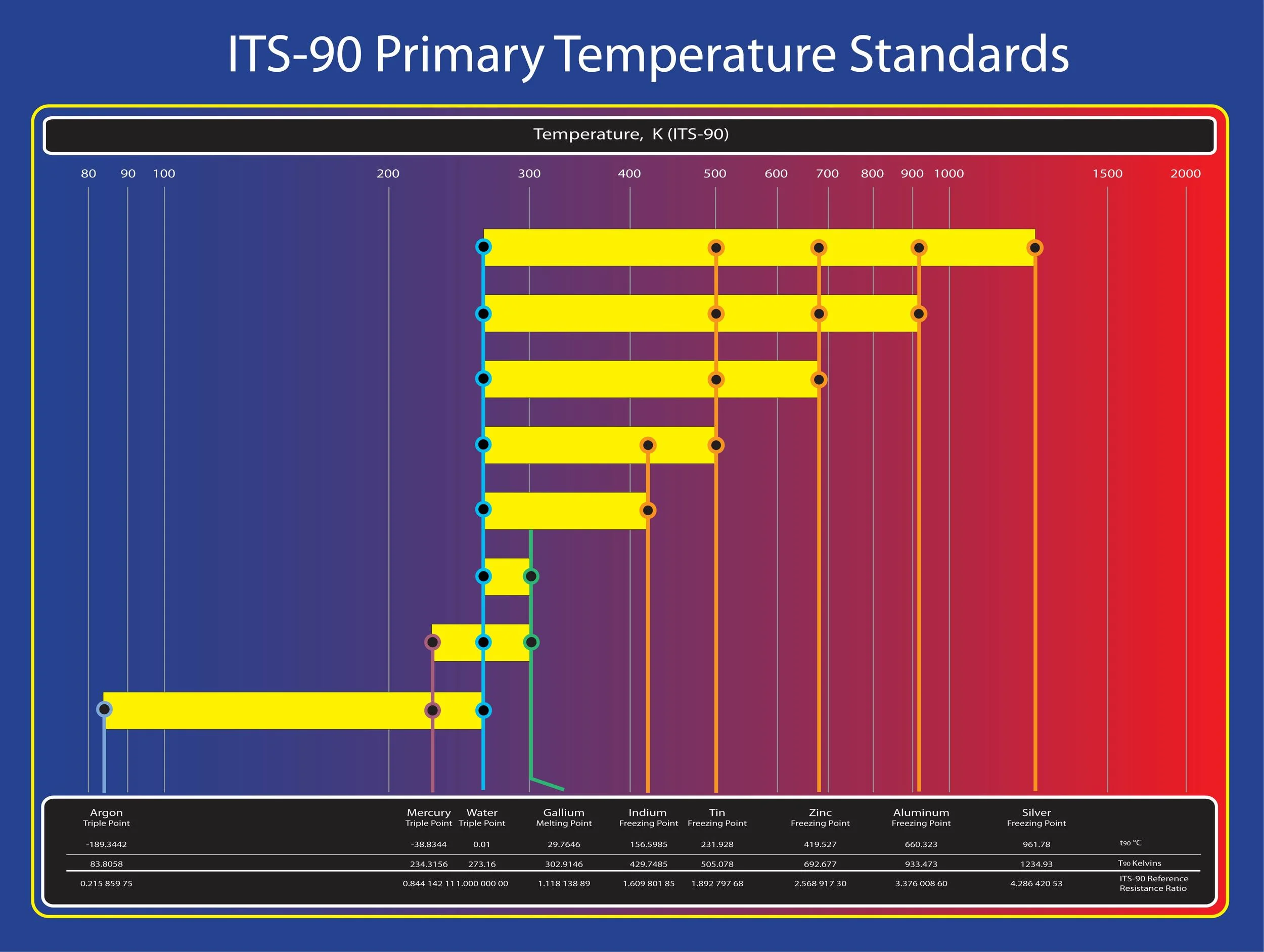

  1. Defining Fixed Points with assigned temperatures

  2. Interpolation between Defining Fixed Points using resistance ratios of Standard Platinum Resistance Thermometers (SPRTs)


THEORETICAL REALIZATION

"Pure Stuff"

Temperatures on the ITS-90 are defined in terms of equilibrium phase states of pure substances. Pure material would produce absolutely accurate resistance readings through an induced phase conversion: melting or freezing, or at Triple Point (all three phases in equilibrium).

Ideal Container for "Pure Stuff"

An indefinitely durable, non-contaminating, sealed environment made of stable, impermeable material maintains the absolute integrity of the "pure stuff".

Ideal Thermowell into "Pure Stuff"

A thermowell with infinite radial conductivity, but no axial conductivity, infrared, or optical
transmission eliminates gradients between the "pure stuff" and the environment outside the cell.


practical realization

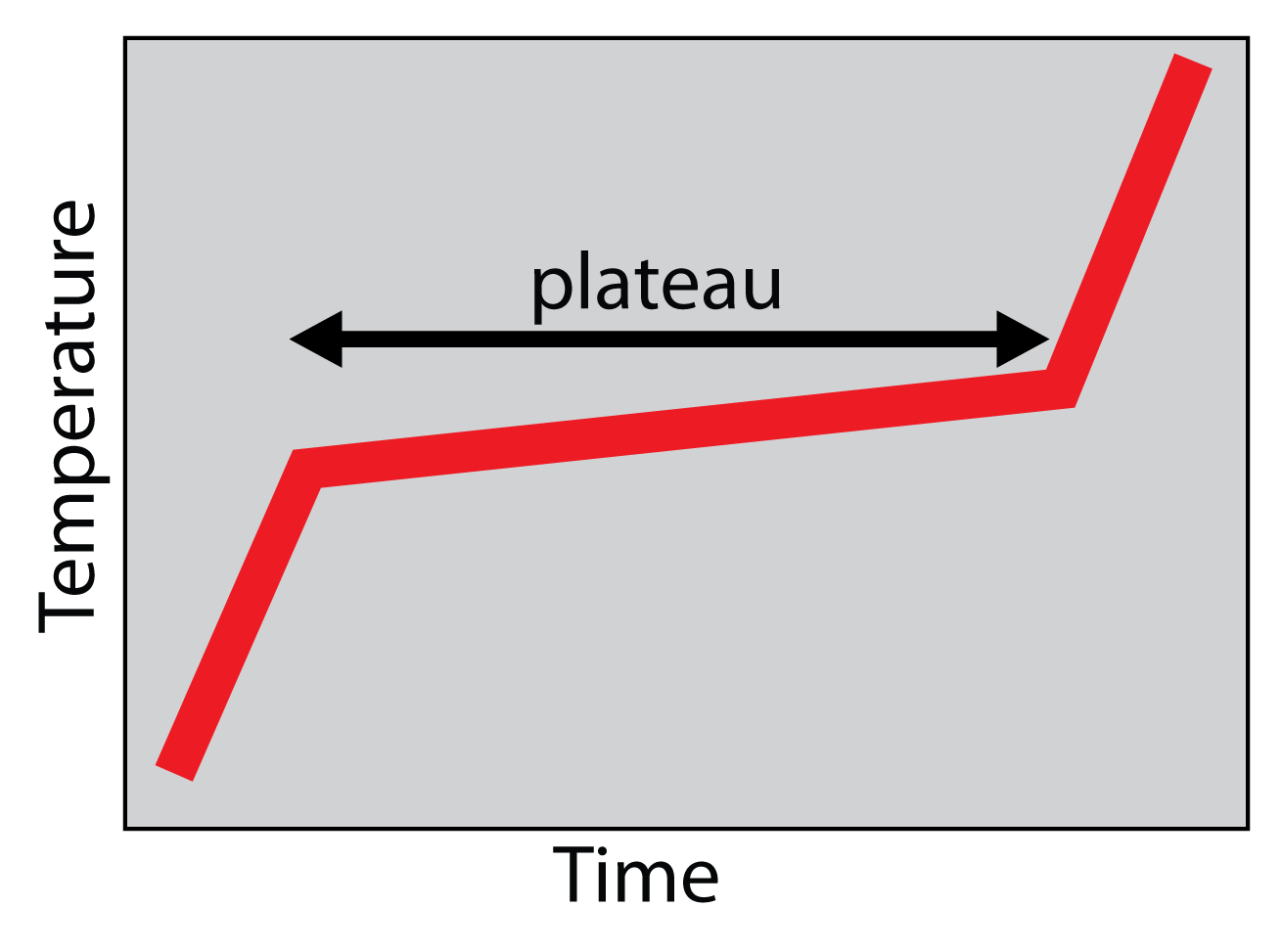

None of these realization ideals exist in the physical world. However, high-purity materials, innovatively painstaking design, and meticulous fabrication can approximate the conditions of Defining Fixed Point phase equilibrium.

Uncertainty is a measure of this approximation - how close the practical comes to the ideal. It is measured by the distance, in miliKelvin, between the temperature in the fabricated environment and the temperature at the theoretical Defining Fixed Point.


Interpolation Instrument

Standard Platinum Resistance Thermometer

The resistive element is a high-purity, strain-free platinum coil. Standards of purity set for the ITS-90 require the element to produce a slope of greater than .003986 K-1 at the Triple Point of Water.

The high-purity platinum element is placed onto/into an electrically insulating support framework, connected to the four lead wires, and sealed inside a protective quartz glass envelope. The stability of the instrument at the Triple Point of Water is an indication of the degree to which the element is supported strain-free on the framework.


SPRT diagram [Converted]-01.png

Deviation Functions & Calibration Coefficients

Deviation Functions

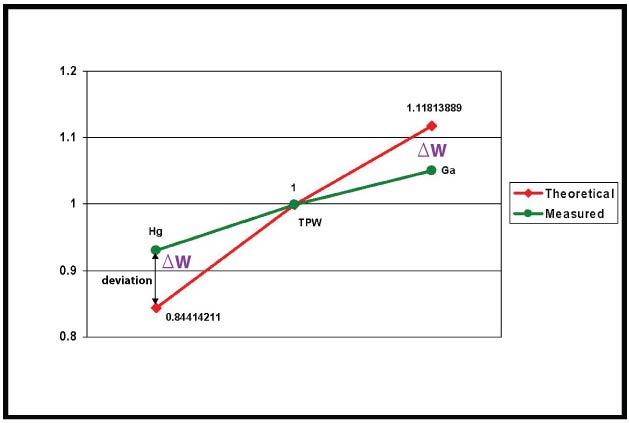

Deviation from the theoretical ideal is noted in calibration coefficient equations as delta W (ΔW).

Coefficient Calculation

Coefficients correct for deviation - adjusting the measured temperature to the theoretical. For the Water-to-Gallium subrange (for example), the deviation function is a second-order fit to the measured resistance ratio deviations:

ΔW5=A5(W-1)+B5(W-1)2
